LB017 Dust Filtering Machine

Dust Filtering Machine: Ensuring clean air by efficiently removing dust particles in industrial settings.

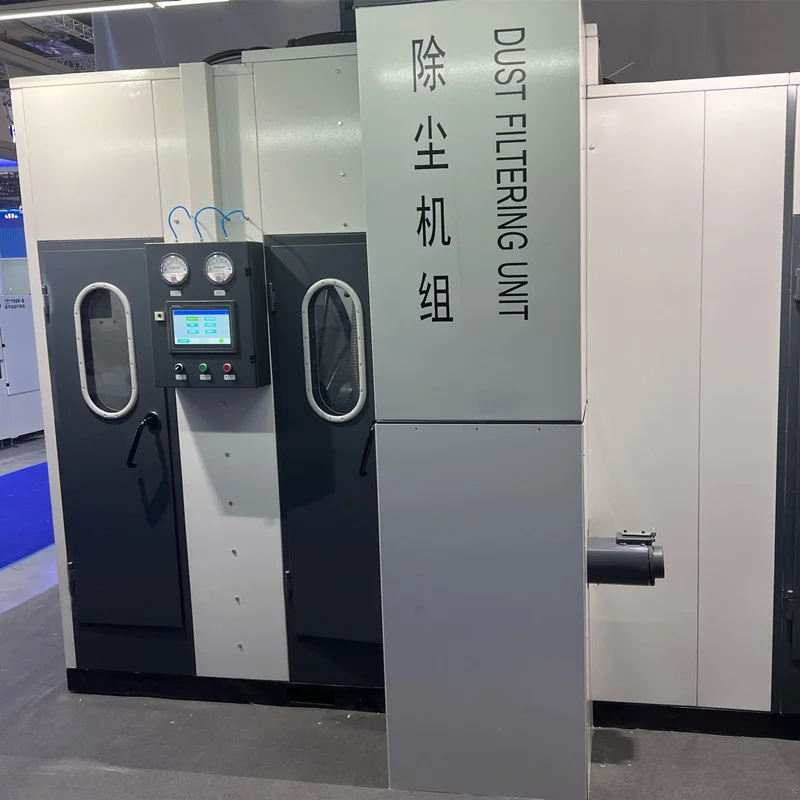

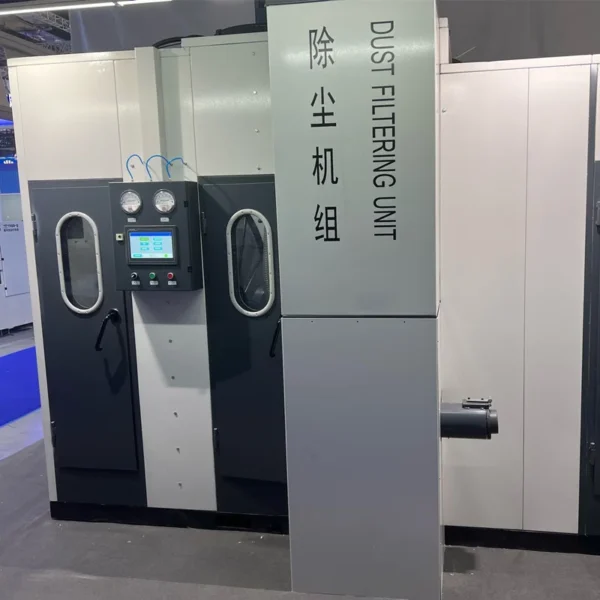

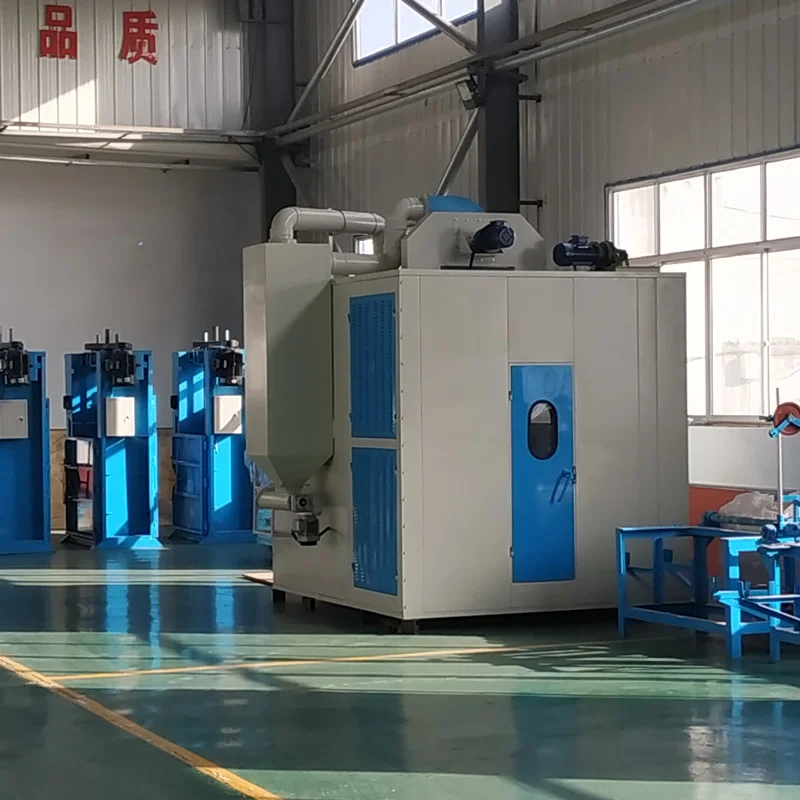

Product Overview: LB017 Multi-Drum Dust Filtering Machine

The LB017 Multi-Drum Dust Filtering Machine is a versatile solution designed for air-conditioning and dust collection systems in industries such as cotton spinning and chemical fiber production. It efficiently captures fibers and dust from the air, purifying it and facilitating the recovery or safe discharge of particulates.

Working Principle

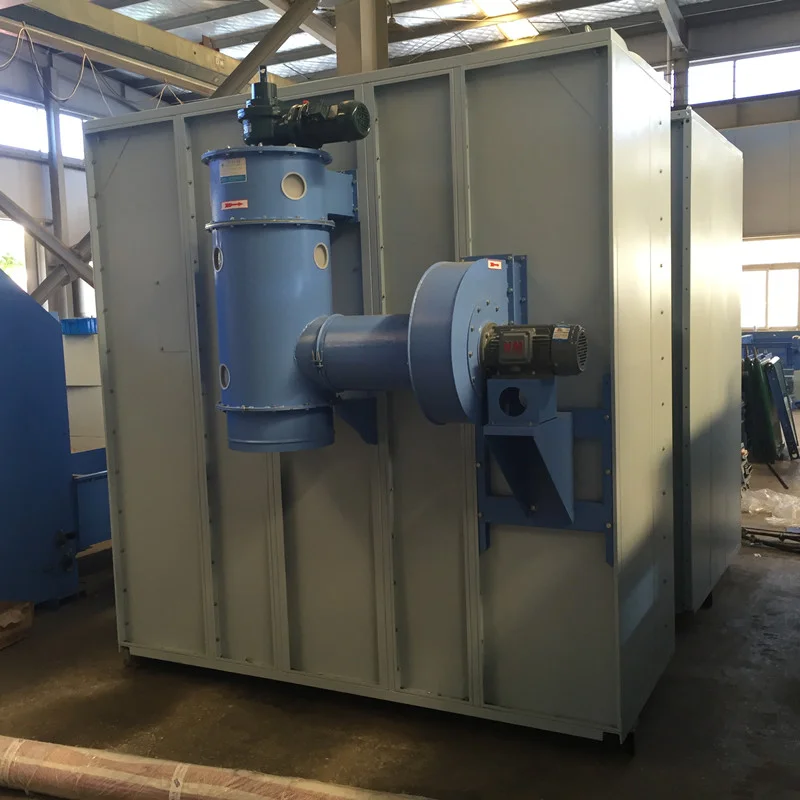

Stage 1: Disc Prefilter

Function: Extracts, separates, and collects fibrous dust from the processing air.
Process: The prefilter targets larger particles, ensuring that the primary contaminants are removed early in the filtration process.

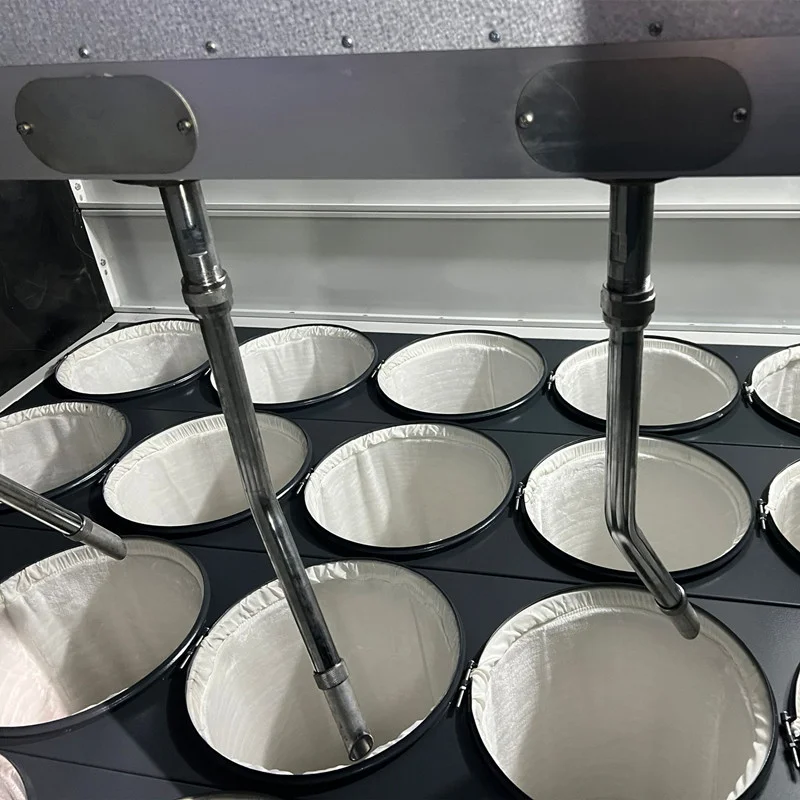

Stage 2: Multiple Round Cage Dust Filter

Function: Filters out fine dust from the air that passes through the first stage.
Process: This secondary filtration stage ensures the remaining fine dust is effectively captured, delivering cleaner air and improving overall air quality.

Benefits

Enhanced Air Quality: The two-stage filtration system ensures comprehensive dust and fiber removal, resulting in significantly purified air.
Versatility: Suitable for various industrial applications, including cotton spinning and chemical fiber production.
Efficiency: The multi-drum design maximizes dust collection efficiency and air purification.

Invest in the LB017 Multi-Drum Dust Filtering Machine for a cleaner, safer, and more efficient industrial environment.

Type and Specification			FL-Ⅲ-19	FL-Ⅲ-23	FL-Ⅲ-27
Stage （Ⅰ）	Disc	Disc diameter (mm)	Φ2000	Φ2300	Φ2600
		Filter area (m2)	2.94	3.77	4.67
		Media(mesh/inch)	（ stainless steel net）60~120mesh/inch
	Size	Length L1(mm)	1010
		Width B1(mm)	2130	2520	2910
		Height H1(mm)	2580	2580	2855
	Total Power (kw)		3.12
Stage （Ⅱ）	Filtering groove	Max diameterΦ(mm)	1900	2300	2700
		Filter area (m2)	20.8	31.7	44.5
		Fiter material	JM
	Size	Length L2(mm)	1750
		Width B2(mm)	2130+450	2520+450	2910+450
		Height H2(mm)	3150	3190	3560
	Total Power (kw)		4.24~5.24
Stage （Ⅲ）	Size	Length L(mm)	2760+620（ auxiliary）
		Width B(mm)	2130+450（ auxiliary）	2520+450（ auxiliary）	2910+450（ auxiliary）
		Height H(mm)	3150	3190	3560
	Total Power (kw)		7.36~8.36

Performance Parameters (Table 2)

Type and Specification	Air-handling volume ×104 （m3/h）						Pressure drop （pa）	Filtering Efficieny （%）
	Filtering system					Return air filtering
	Cotton waste	Low count yarn	Medium count yarn	Fine count yarn	Chemical fiber yarn	Return air filtering
FL-Ⅲ-19	1.2-2.0	1.6-2.4	2.0-2.8	2.4-3.2	2.8-3.6	3.0-4.0
FL-Ⅲ-23	2.0-3.0	2.4-3.5	2.8-4.2	3.2-4.8	3.6-5.4	4.0-6.0	≤250	≥99
FL-Ⅲ-27	2.8-4.0	3.2-4.8	3.6-5.8	4.0-6.6	4.4-7.4	4.8-8.0
