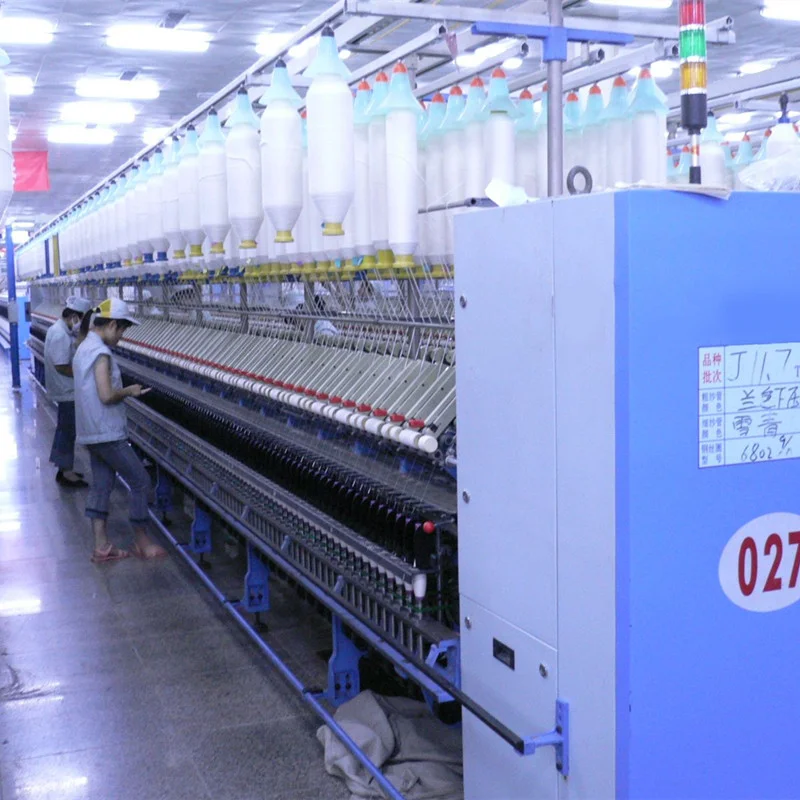

FA506 Ring Spinning Frame Machine

Ring Spinning Frame Machine: Advanced machinery for high-quality yarn production in textile manufacturing.

FA506 Ring Spinning frame series is made from the leading design proposal, advanced manufacturing methods, and perfect special parts and components. They ensure high-quality yarn spring. The machine features convenient operation and is easy to manage due to its high automation. It is suitable for spinning of cotton and synthetic fibers or their blends to produce weaving or knitting yarns. The machine is suitable for the processing of cotton, synthetic fibers, or their blends

Spindle gauge	70mm
Lifting	205 180 155 mm
Ring Diameter	Φ45,Φ42,Φ38mm
Number of Spindle	384,396,408,420,432,444,456,468,480,492,504,516
Yarn count	97.2—4.9tex (6–12Ne)
Twist	300–1600(T/m)
Draft Ratio	10-50
Spindle speed	15000-22000 rpm
Spindle drive	Single tension pulley,Z or S twist optional
Spindle wharve diameter	Φ22,Φ24,Φ20.5mm
Creel	One tier hanger, Four or six rows optional
Main Motor(380v50Hz)	15/7KW 17/9KW 18.5/11KW 22/11KW (380v)
Suction Motor (380v 59 Hz)	1.5KW(for No.of spindles below4444) 2.2KW (for No.of spindles above 456)
Lift Motor	370W
Distance between Spindle of left and right side	700 mm
Headstock dimensions Endstock Dimensions	Width: 640mm, length:680mm, height:1700mm Width:640mm, length:1300mm,height: 1768mm
Total height of the machine	2300mm
Total length of the machine	L=2380+(N/2-1)70mm L:length N:where means the number of spindles
