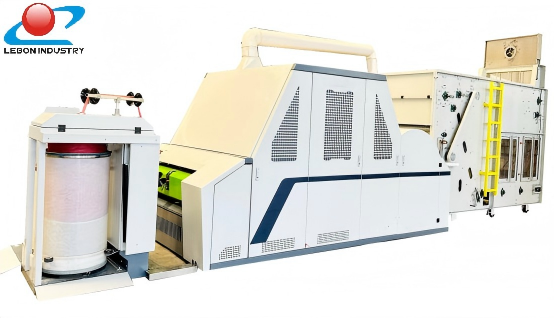

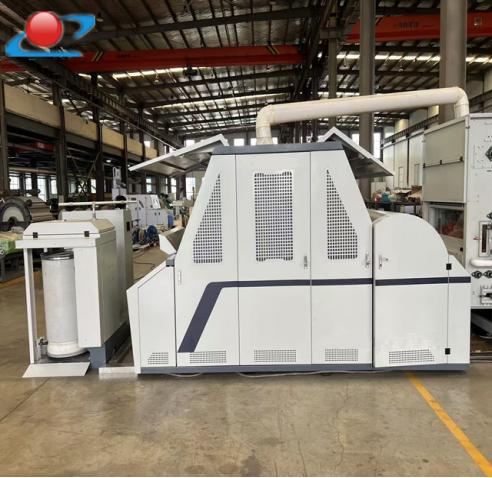

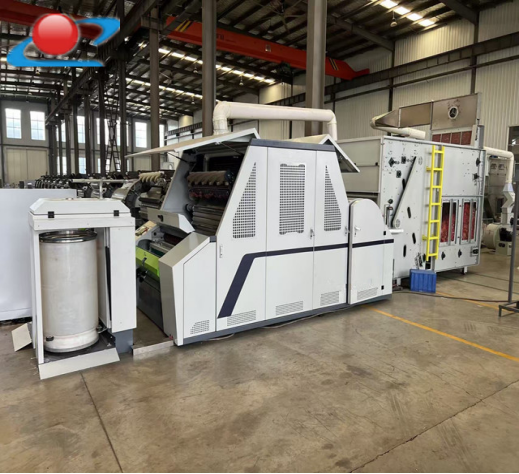

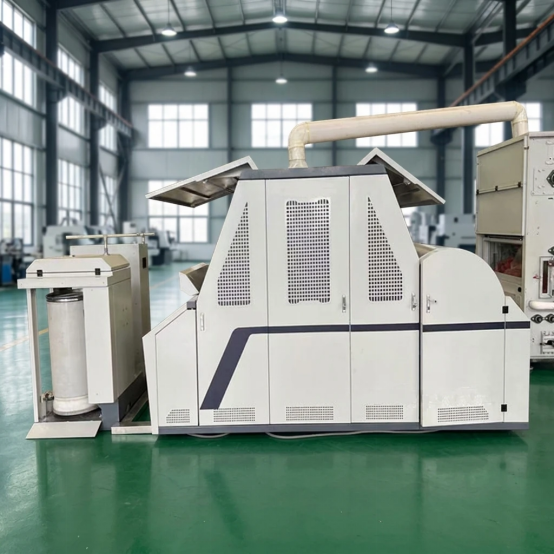

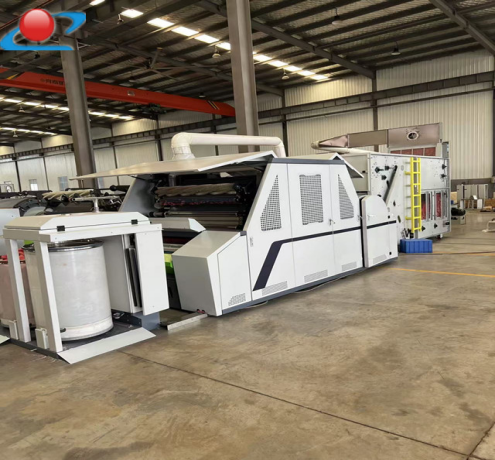

FA1288 Long Fiber Carding Machine

FA1288 Long Fiber Carding Machine: Combined roller and flat carding for opening, mixing, and carding diverse natural and synthetic fibers (22-102mm) into uniform slivers for spinning.

FA1288 long fiber carding machine is a combination of roller carding and flat carding, used for opening, mixing,carding and impurity removal of spinnable raw materials of different length like natural and chemical fibers such as cashmere, wool, cotton, silk, hemp, bamboo,polyester, as well as high-performance fibers, with a length of 22-102mm and a fineness of 1.5-7 denier. It combs the curly fibers into a generally straight single fiber state, bundles them into cotton slivers of a certain specification, and places them in the sliver can systematically for the next process.

Working width(Width of cylinder)	1020mm	1280mm
Suitable fiber lengths and varieties	22-102mm(chemical fiber and natural fiber,high performance fiber)
Cotton feeding weight	400-1300g/m
Sliver weight	3-7g/m	3.5-10g/m
Max Speed	320m/min(Speed of can coiler lump roll)
Max output	134kg/h	190kg/h
Form of matched can coiler	Straight-line changing
Coiler can specification	Ф600900; Ф10001200mm
Continuous dust extraction capacity	4000m3/h
Outlet static pressure	-850~-1000(pa)
Total installed power	24.64kw
Weight of machine	≈11000kg
Overall size(LWH)	110002800710mm

Key Advantages:

VFDs on all key components – Eliminate pulley changes, enable flexible adjustment for multi-component blending.

Raised cylinder center – Extends carding arc, accommodates more fixed flats and cleaners for superior quality.

Independent VFD-driven flats – With adjustable brush roller gap for thorough cleaning.

Dual fixed flat configuration – Flexible combinations for different raw materials, easy assembly and effective impurity removal.

High-speed three-roller doffing – Synchronous belt drive, pneumatic scrapers, anti-static apron, and special surface treatment ensure smooth web transfer.

Hybrid auto leveler system – Combines non-contact vortex sensor (short-term) and sliver thickness monitoring (long-term) for stable control.

Fully enclosed aluminum alloy under-casings – Reduce static, enhance durability.

Streamlined transparent dust collection – Matches airflow, reduces resistance and energy consumption.

Independent pre-carding unit – VFD-driven, synchronous belt transmission, anti-wrap shaft-end design for efficient pre-processing.
