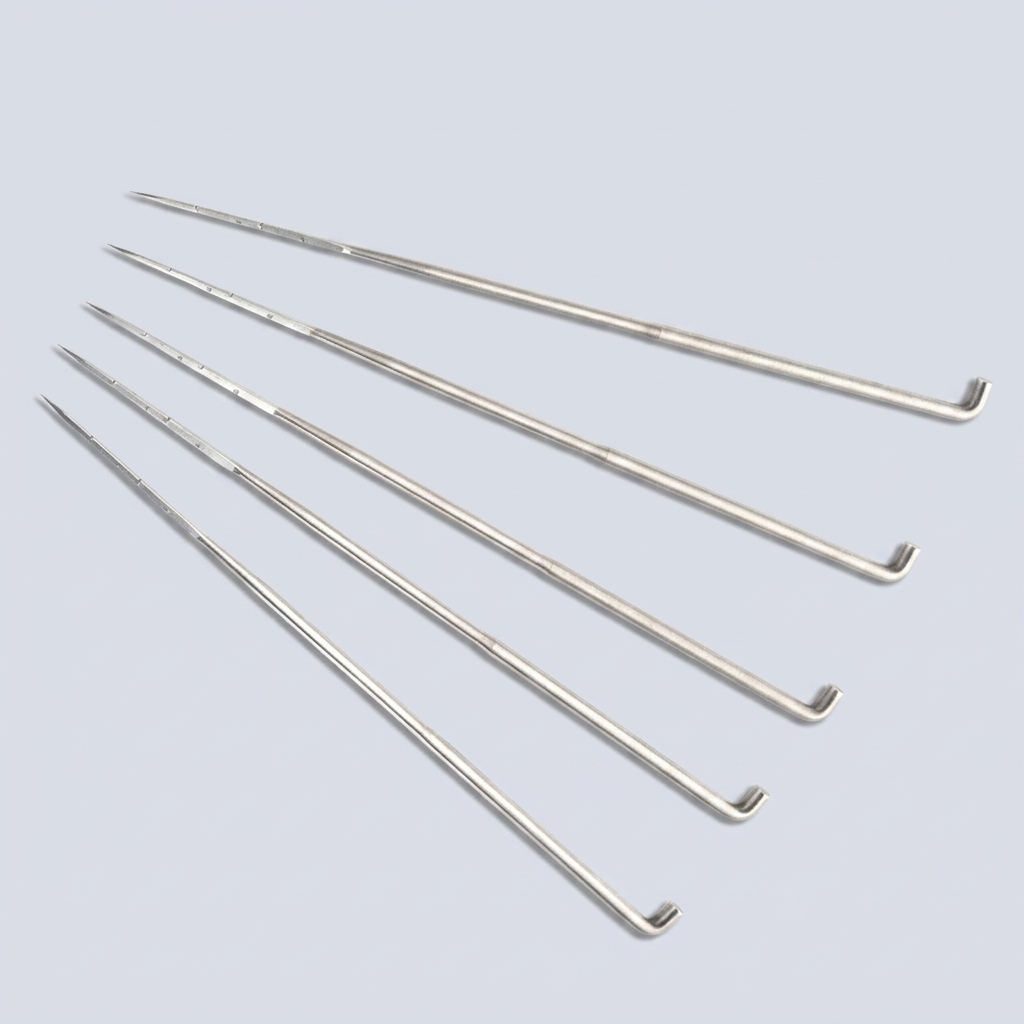

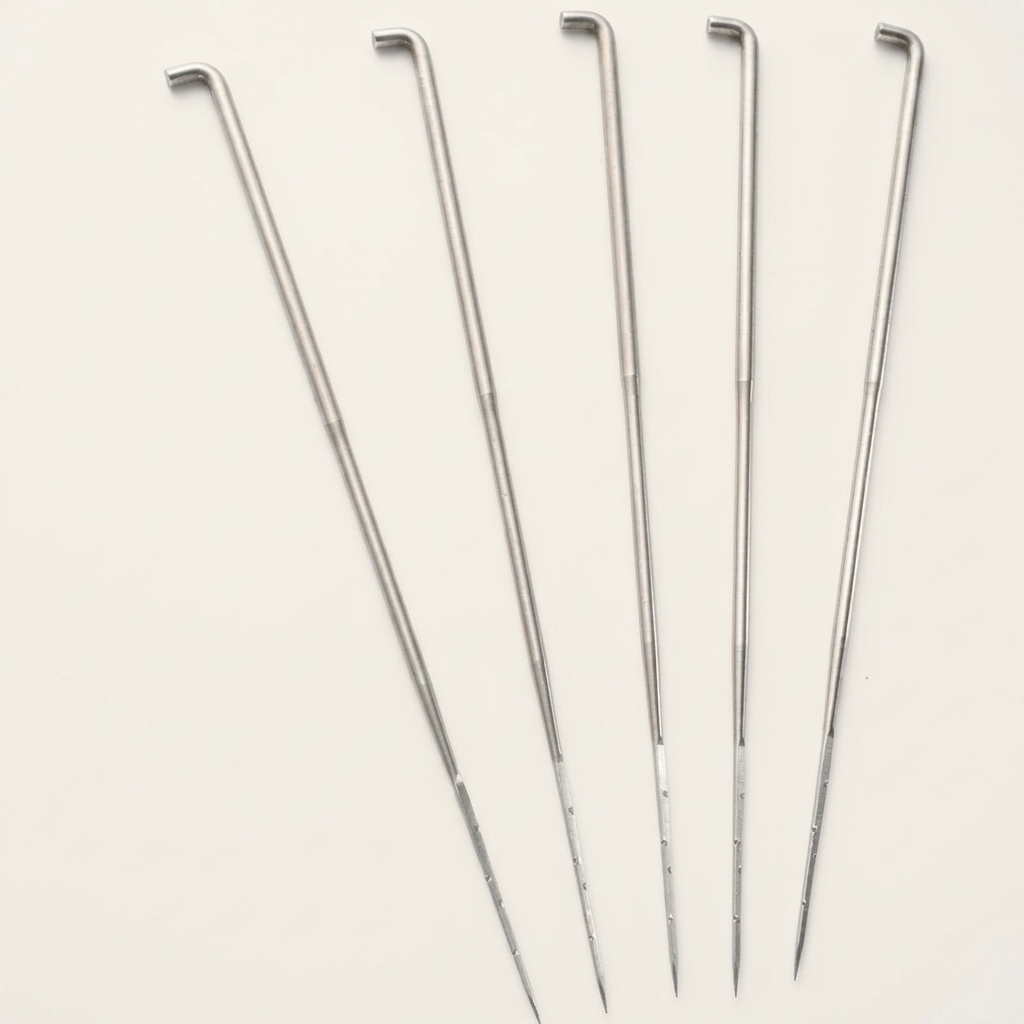

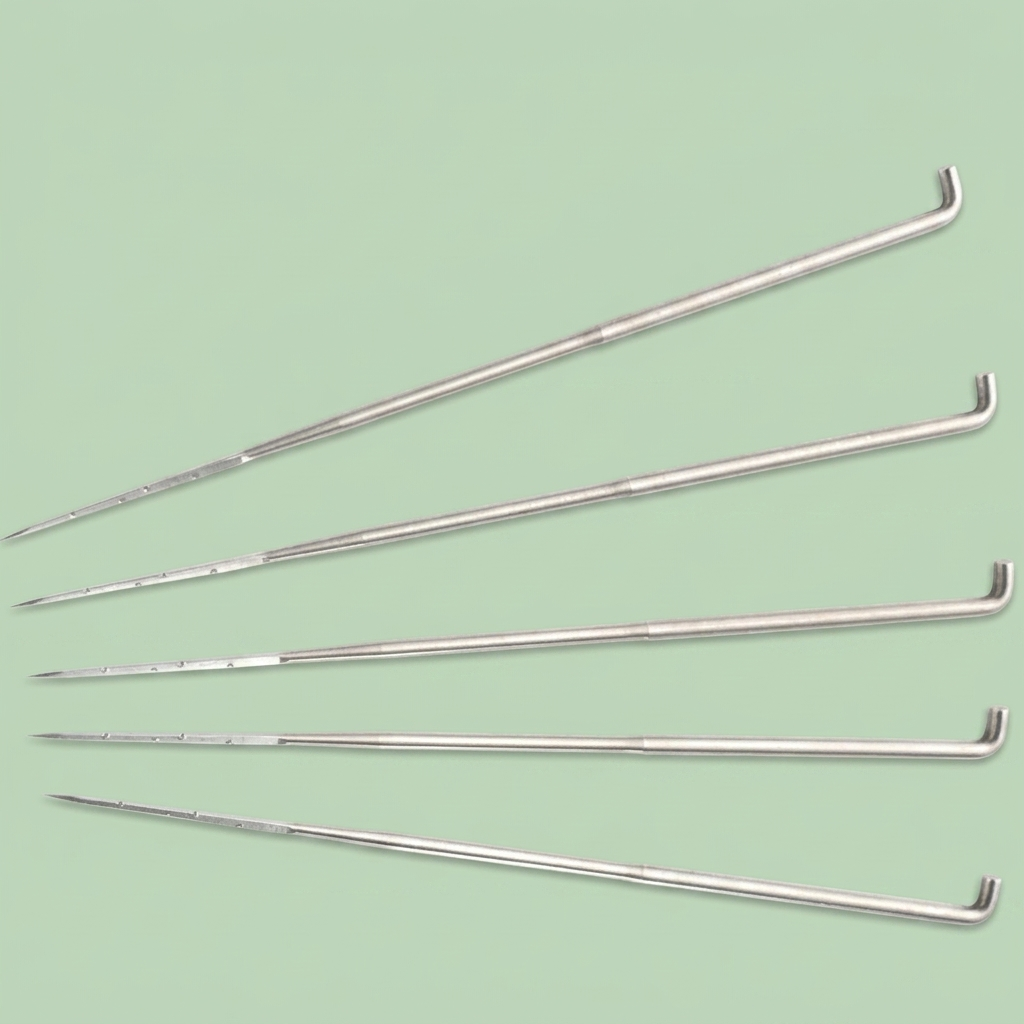

Conical Felting Needle | High-Strength Needle for Automotive, Geotextile & Filter Felt

Key Advantages at a Glance

1. Greater Bending Force — Tapered triangular cross-section resists bending under heavy load
2. Reduced Breakage Rate — Gradual thickness transition minimizes stress concentration
3. Lower Heat Generation — Optimized barb geometry reduces friction at high punching speeds
4. Minimal Fiber Damage — Graded barbs (smaller near the tip) penetrate fibers gently
5. Extended Service Life — High carbon steel with precision heat treatment for superior wear resistance
6. Improved Penetration Efficiency — Consistent needle performance across the entire working length

Design & Construction

Our conical felting needles are precision-manufactured from high carbon steel and undergo rigorous heat treatment to achieve optimal hardness and toughness. Each needle features:

1. Tri-Leaf Tapered Cross-Section — The needle tip forms a conical triangular point perpendicular to the longitudinal axis. Every cross-section along the working part maintains a triangular profile, with the needle gradually thickening from tip toward the shank and the taper angle increasing distinctly.

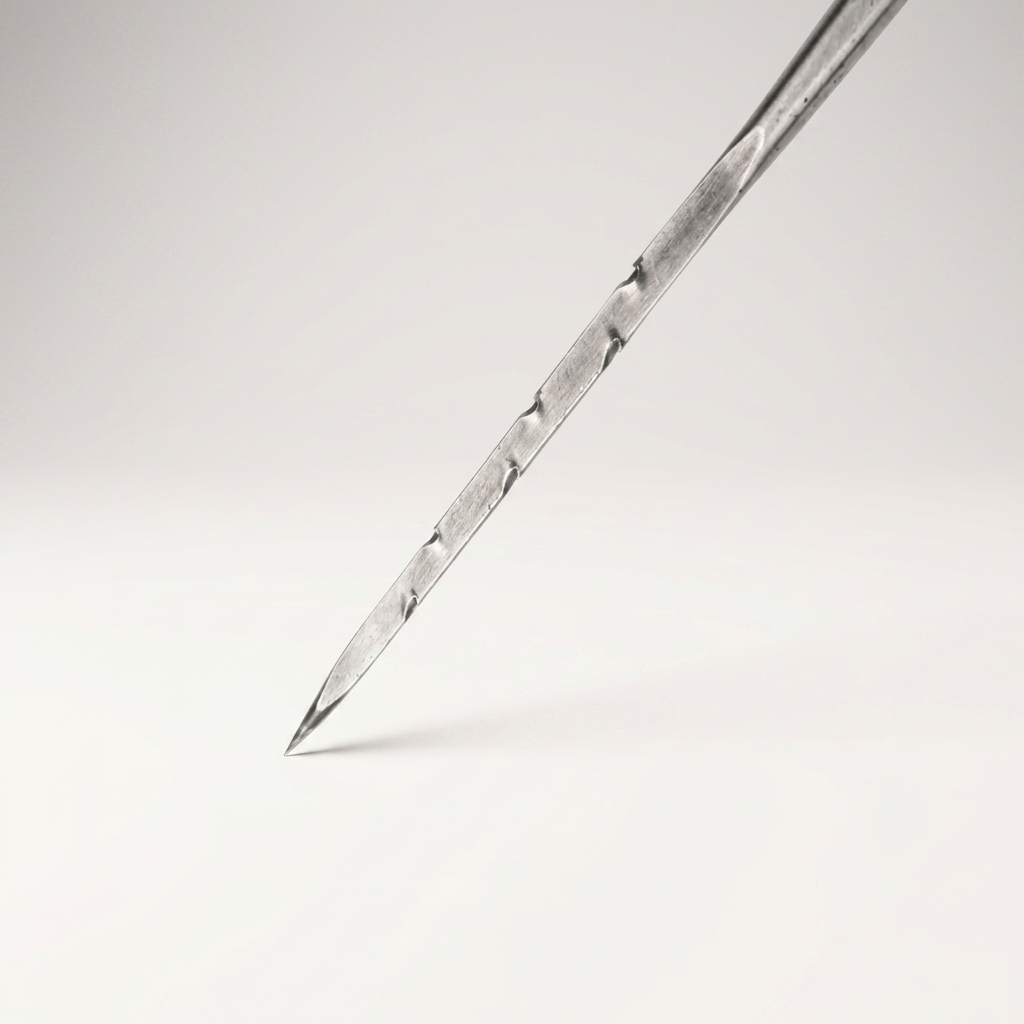

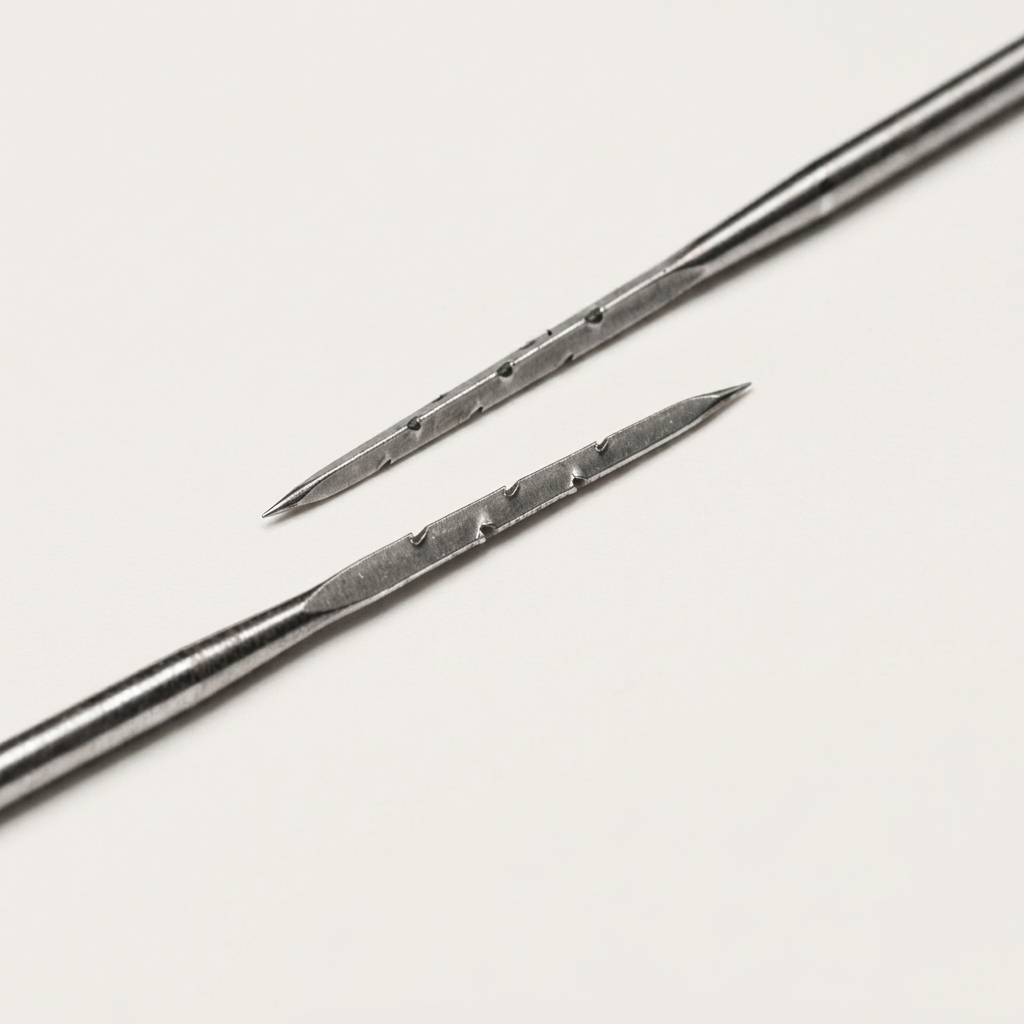

2. Graded Spiral Barbs — Barbs along each of the three edges are size-graded: the closer to the tip, the smaller the barb. Multiple barbs are arranged in a helical (spiral) pattern along the three edges, with their tips oriented toward the needle point. This design ensures smooth, progressive fiber engagement.
3. Available Barb Configurations — Choose from G, GB, or B barb shapes to match your specific fiber type, fabric weight, and desired surface finish.
