FA1211/ FA1213 high production cotton carding machine is by Lebon based on many years of experience in carding development and production, drawing on the current advanced technology of high production carding machines in domestic and oversea market.
FA1211/ FA1213 high production cotton carding machine is by Lebon based on many years of experience in carding development and production, drawing on the current advanced technology of high production carding machines in domestic and oversea market. This type of carding machine maintains the process and technical performance of the original multiple mature models, uses functional module design ideas for structural optimization and integration, and integrates product use functions and aesthetic functions.
Type | FA1211 | FA1213 | ||
Application | Application applicable to chemical fiber,pure cotton in length from 22~76mm and other blended material | |||
Max.Actual output(kg/h) |
|
| ||
Max.Sliver delivery speed(meter/min) |
|
| ||
Sliver count(g/m) | 3～7 | 3.5～10 | ||
Feed weight(gram/meter) | 400～1000 | 400～1300 | ||
Working width(mm) | 1000 | 1280 | ||
Total draft folds | 60～300 | 38～370 | ||
Licker-in working diameter(mm) | Φ250 | |||
Doffer working diameter(mm) | φ706 | |||
Doffer working speed(rpm) | 4.3～84 | |||
Cylinder working diameter(mm) | Φ1288 | |||
Cylinder working speed(rpm) | 347～477 | |||
Pieces of rotary | 30/84 | |||
Flat speed(mm/min) | 70～408 | |||
Attached | Licker-in carding segment | 2 (Pieces) | ||
| Front stationery flats | 8 (Pieces) | ||
| Back stationery flats | 10 (Pieces) | ||
Web cleaner- |
| Cotton | ||
| Front 2,Back 2 | Chemical fiber | ||
Continuous air suction volume(m³hour) | 4000 | 4500 | ||
Statistic pressure at exit(pa) | -800 | |||
Compressed air pressure(kg/cm²) | 6~7 | |||
Compressed air consumption(m³/h) | 0.5 | |||
Total power installation(KW) | 9.24 | 13.99 | ||
|
| |||
Land occupation (LxWxH)(mm) | 5825X2480x3705(Φ1000) | 5825X2480x3705(Φ1000） | ||
Machine net weight(kg) | 7200KG | 8000KG | ||
Feature:

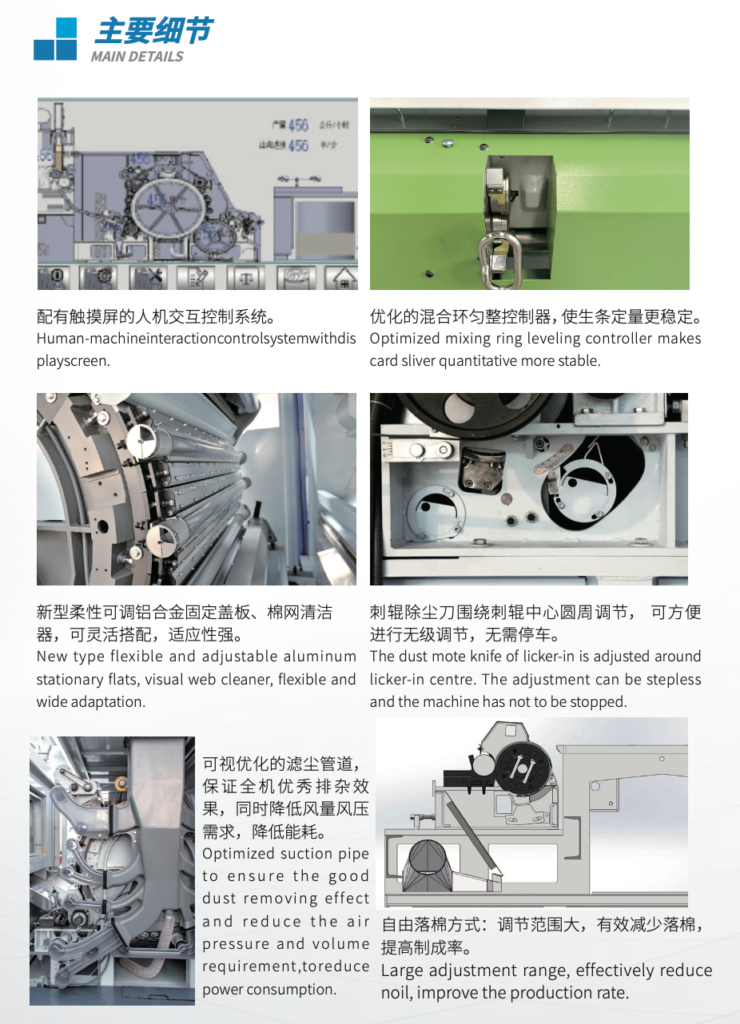

1. Human-machine interaction control system with display screen.
2. New type flexible and adjustable aluminum stationary flats, visual web cleaner, flexible and wide adaptation.
3. Optimized mixing ring leveling controller makes card sliver quantitative more stable.
4. The dust mote knife of licker-in is adjusted around licker-in center. The adjustment can be stepless and the machine has not to be stopped.
5. Optimized suction pipe to ensure the good dust removing effect and reduce the air pressure and volume requirement, to reduce power consumption.
6. Large adjustment range, effectively reduce impurity improve the production rate.
